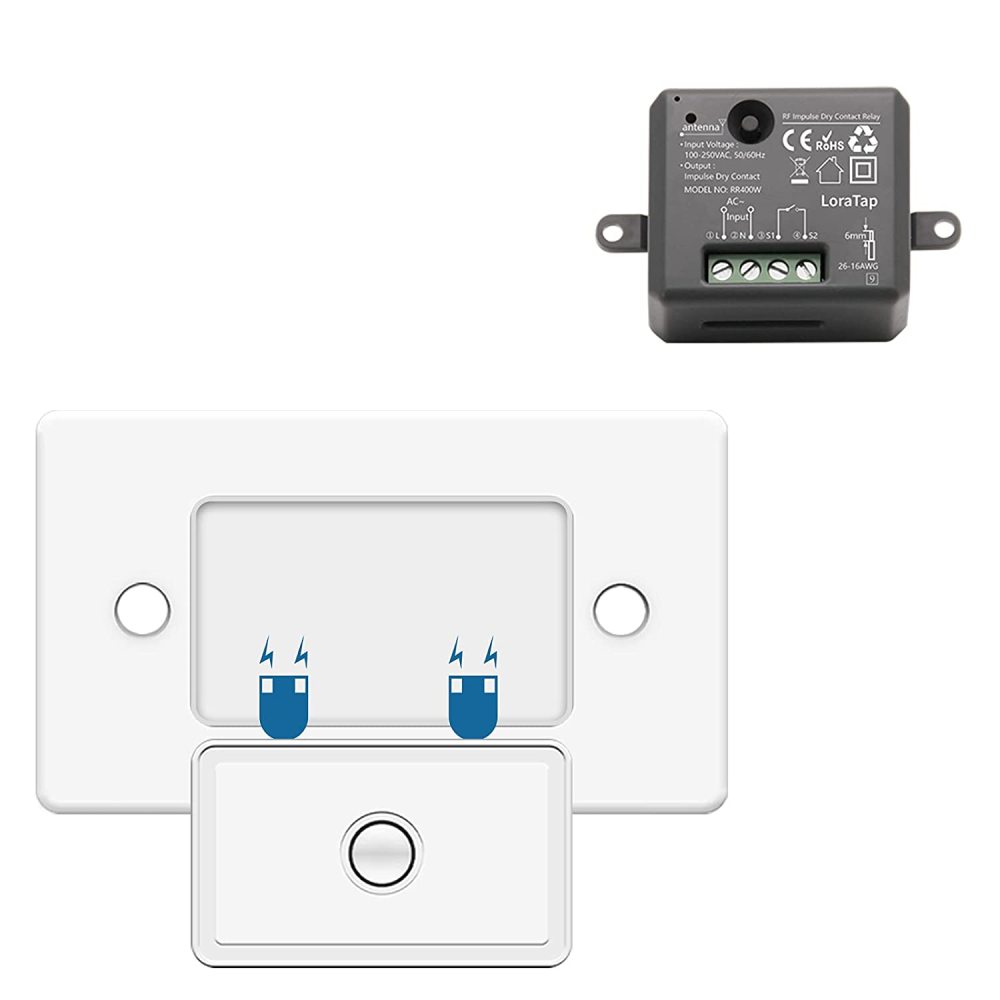

RF Impulse Dry Contact Relay Kit

SKU: SS100Q1-WHI

5 (1 Reviews)

47 Sold

~~$34.99~~ $13.99

10% OFF WITH PURCHASE OVER 20 UNITS

Get it

8I3ARXQP

Received successfully

Coupon Code

CONTINUE SHOPPING

Wholesale:

Quantity:

1 * $13.99 = $13.99

save $0.00

Add to Favorites (3)

1/1

Description

Two-way control: Add the LoraTap wireless relay to your original dry contact pulse, you will be able to control your connected device or lamp with the handy remote control, also you can still use your original button.

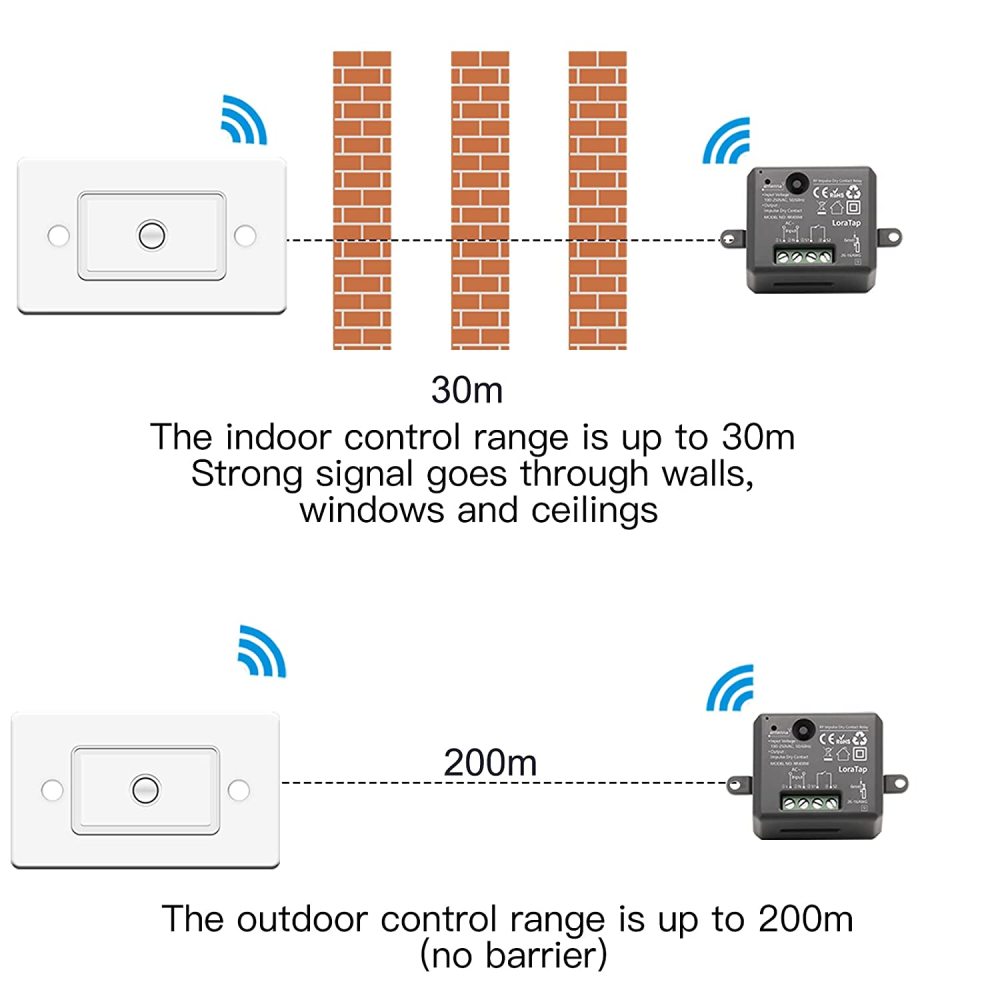

Long Distance Remote Control: Once the installation is complete, you don't need to reach for the fixed button switch every time you want to turn the device or light on or off With a simple click on the remote control, you can control your device from up to 30m away (indoors) or up to 200m (outdoors).

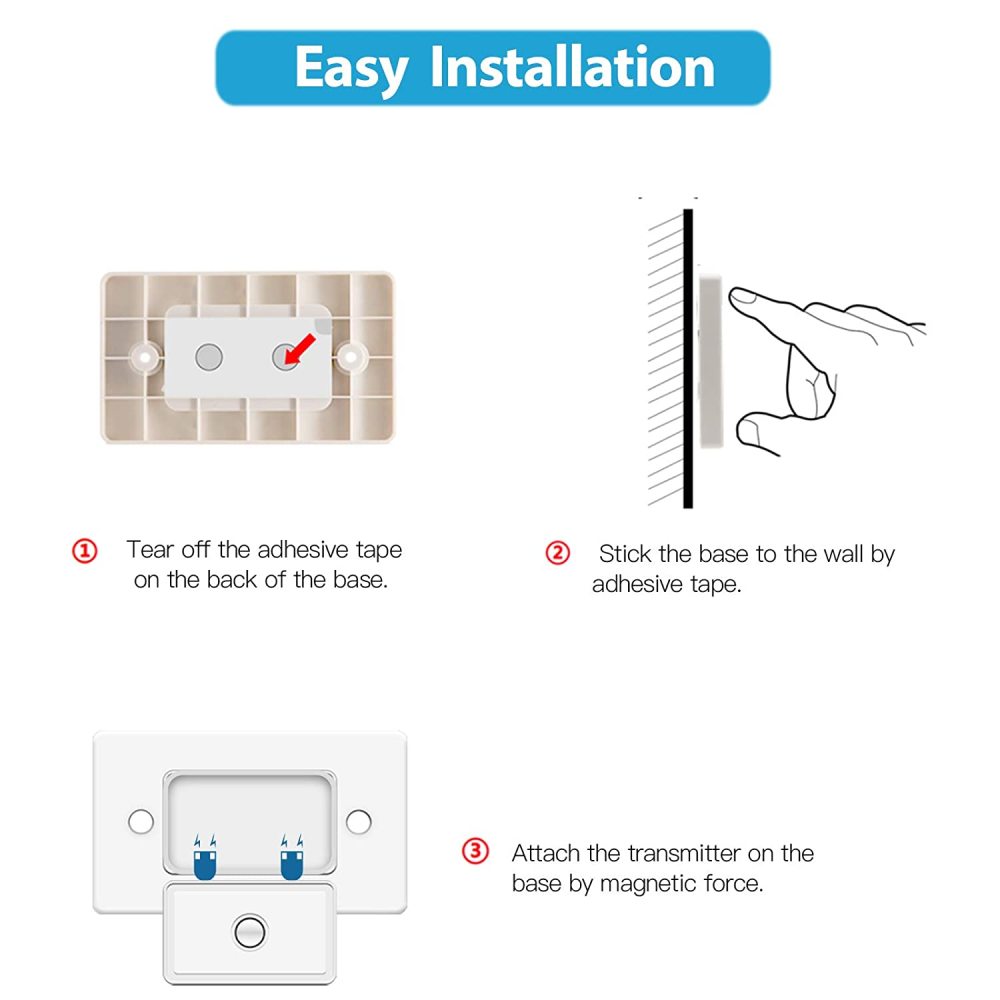

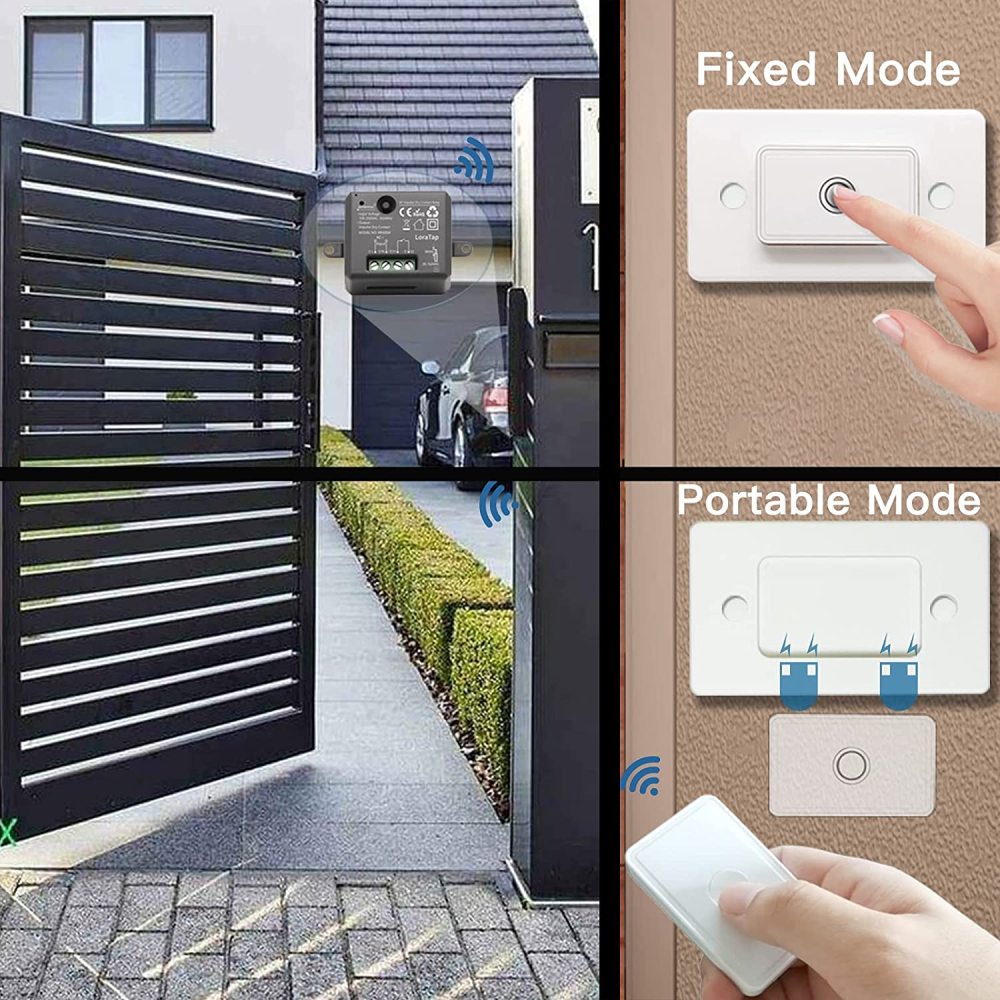

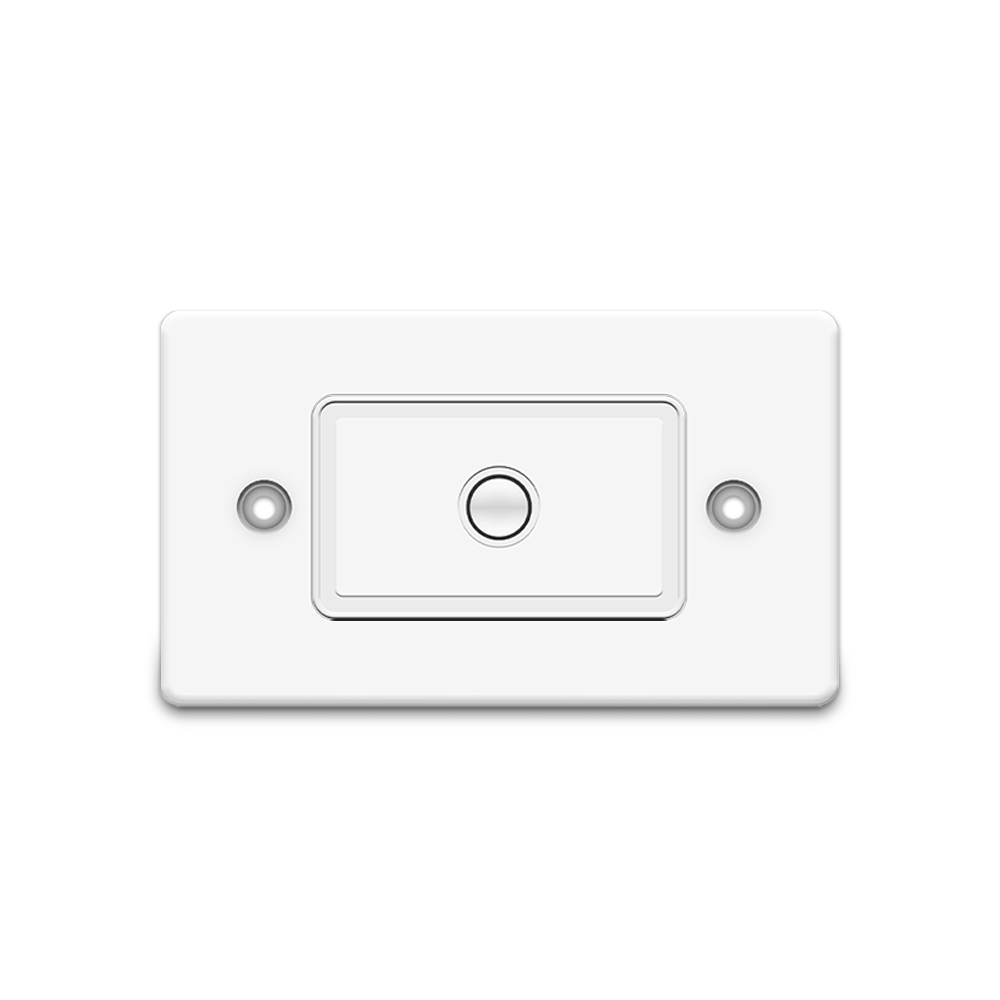

Remote control with magnetic plate: Mount the magnetic plate anywhere easy to reach, for example, on the wall next to the door (with the double-sided adhesive or screws offered), or simply attach it to any magnetic surface such as the refrigerator door (since there are magnets in the plate.), then place the remote control on the plate, you can use the remote control as a traditional button switch.

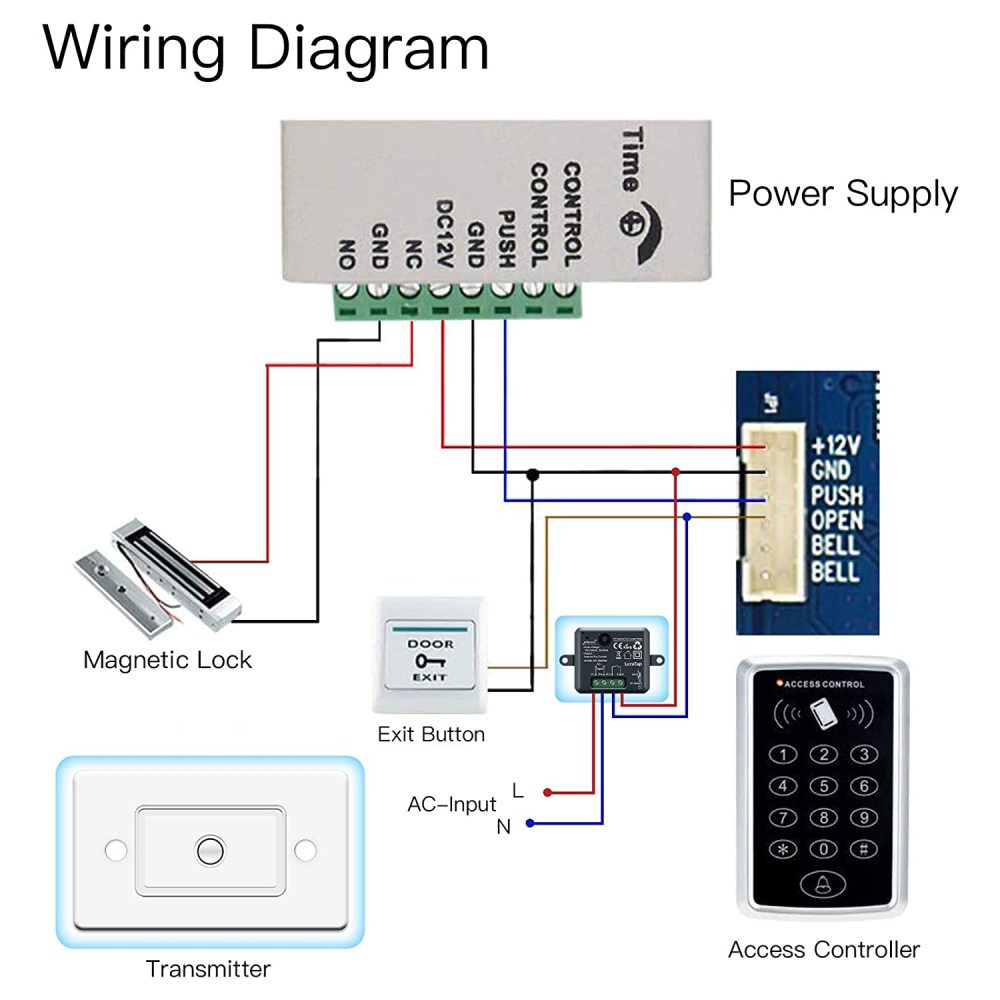

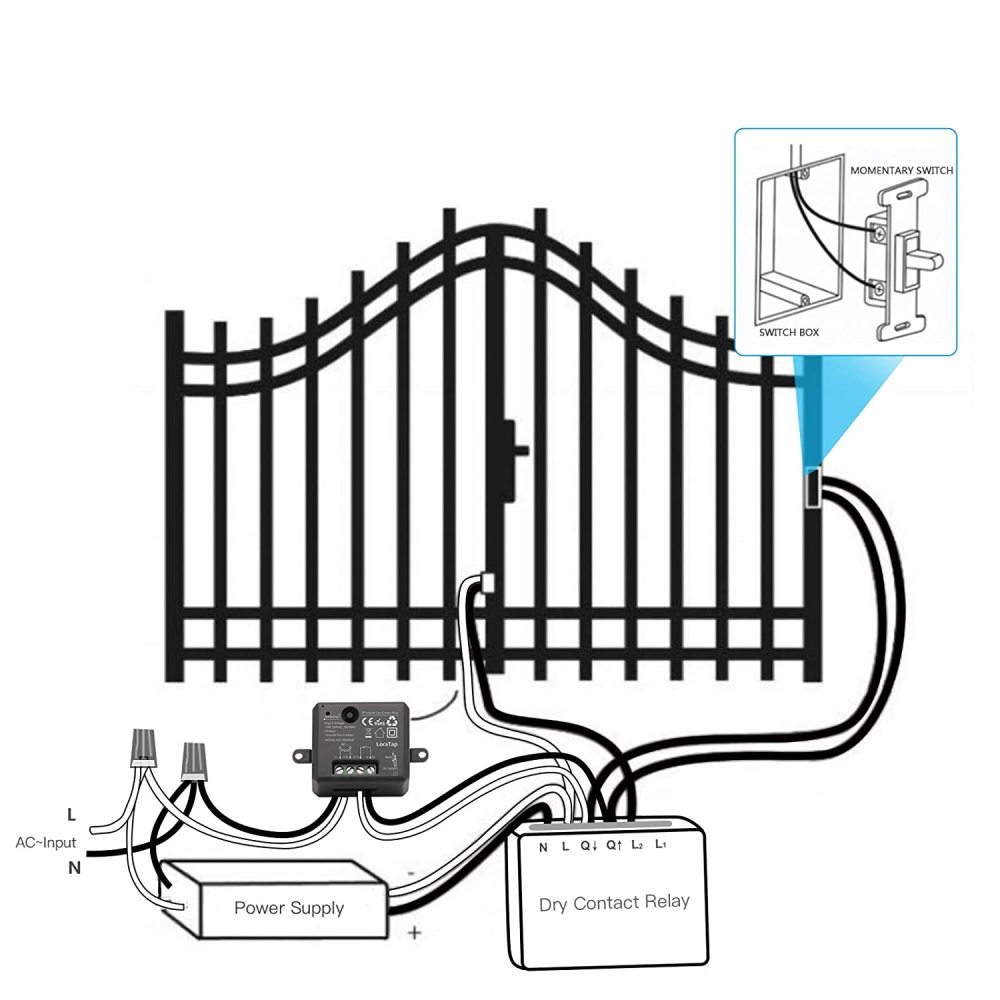

Easy installation: Relay and remote control are already paired, no need to pair before use. Just connect the wireless relay to the pulse relay, restore the power, you can control the connected device or light with a remote control in minutes.

Safe and Convenient to Use: The LoraTap remote control allows you to control your device without complicated wiring to the switch. It is not necessary to configure the application step by step with a Wi-Fi network and a smartphone. Patented LoraTap product with CE, FCC and RoHS certificates. The remote switch is very friendly and safe for the elderly and children. Comes with a hanging rope, very convenient for use and storage.

Specifications
Transmitter (Remote Control)
Color: White
Button: 1 Button, ON / OFF
Signal Range: Up to 30-60m (indoor), up to 200m (outdoor), depending on local circumstances
Frequency: 868Mhz
Duration: Over 220 thousand clicks
Battery type: CR2032 (Included)
Battery life: Up to 10 years

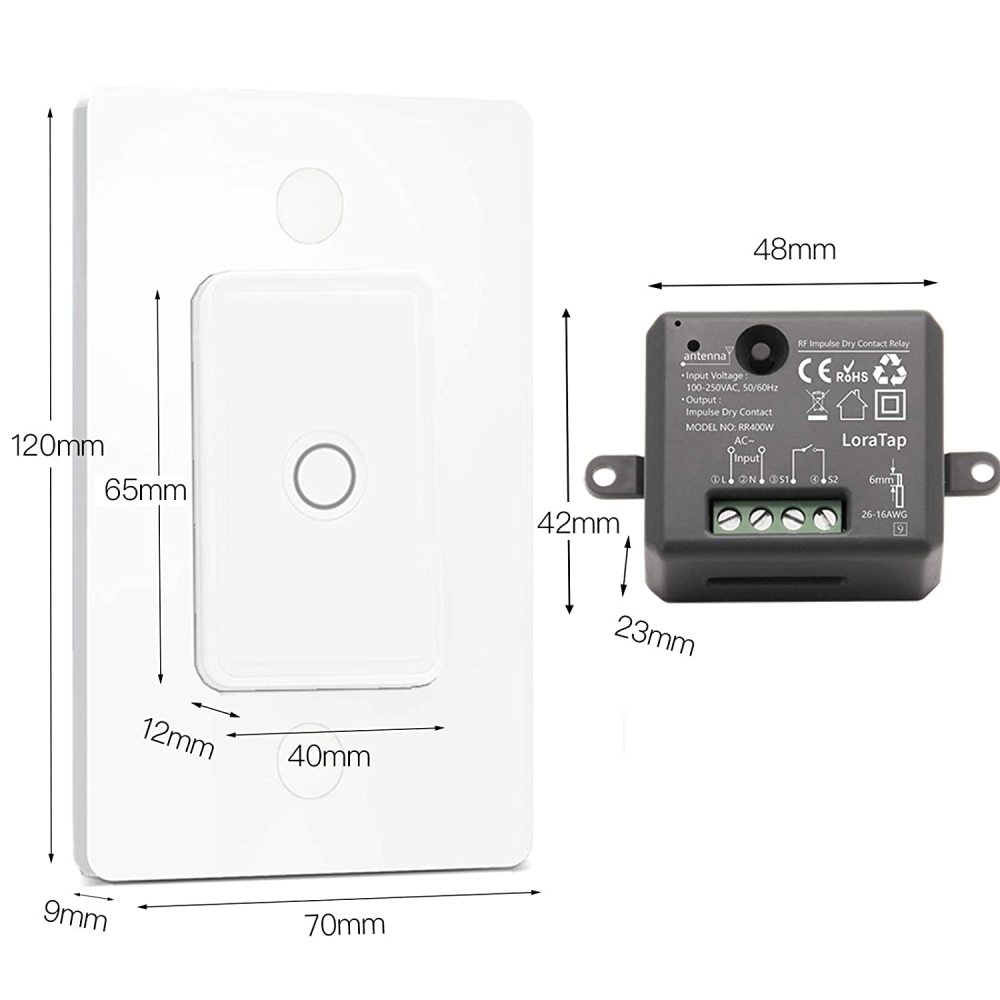

Magnetic base dimensions: 120x70x9mm
Portable remote control dimensions: 65x40x12mm

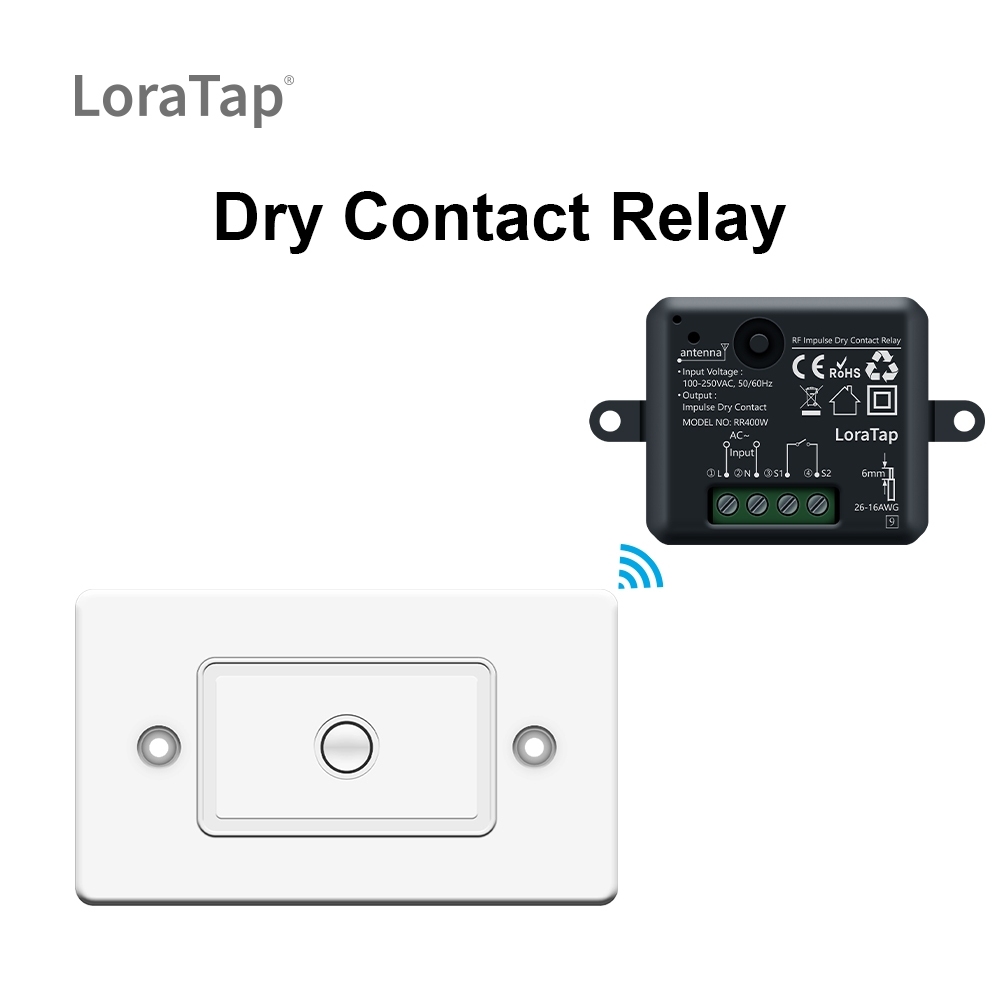

Relay receiver
Color: White
Input: 100-250VAC, 50 / 60Hz
Output: Impulse Dry Contact
LED light color: Blue
Dimension (Height x Width x Length): 48 x 42 x 23mm

Package Includes
1 x Relay Receiver
1 x Switch (Remote Control)
1 x Magnetic Base for Switch
1 x CR2032 Battery (for remote control)
1 x Biadhesive
1 x Screwdriver
4 x Screws
1 x User Manual

Questions & Answers:
Question: Why the price is so competitive?
Answer: We are LoraTap official store. We are a manufacturer for smart home products, we can accept mass order and can provide technical support. Please feel free to contact us(support@loratap.com) if you have any questions.

Question: About Product
Answer: All products will be fully tested before ship from our factory, Please feel free to contact us(support@loratap.com) if any question for our products.
